Kit Mesbio 27
Kit Mesbio 27
CHARACTERISTICS
27G ø0.40 x 12mm
KIT MESBIO
FOR U225
These kits are used in combination with the U225® Intradermal Injector to help the user perform a safe, regular and consistent injection of products. The U225® intradermal injector delivers substances intradermally in a controlled manner, in the desired doses, in variable time intervals and at adjustable depth.

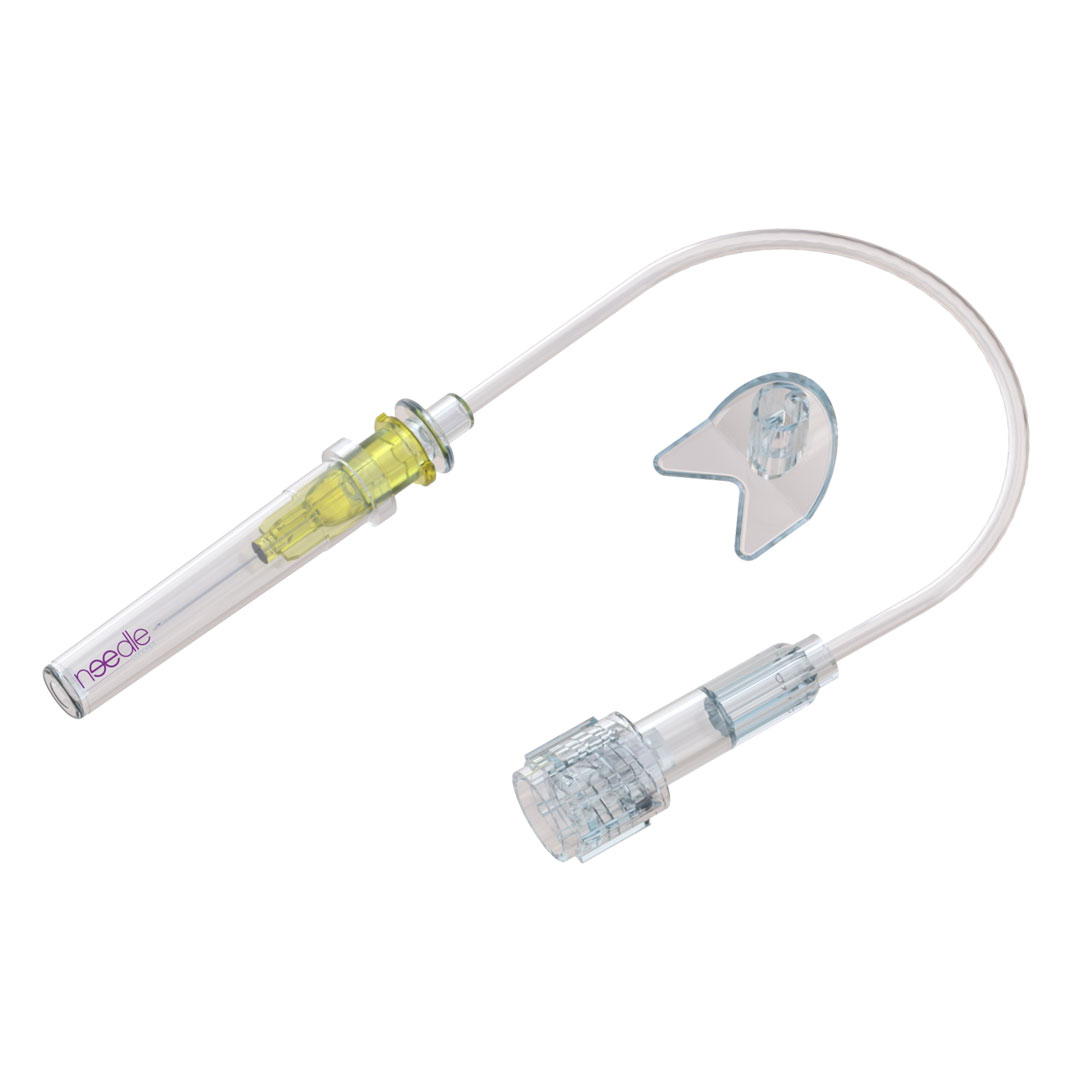

The Mesbio® Kit consists of a high precision hypodermic needle, assembled with a PVC tubing. The hub of this tubing can connect to any type of syringe (Luer lock or standard).
A single-use viewfinder is attached to the end of the U225® injector stem. This «viewfinder» provides support and good aim for precise injections on the patient’s skin.
THE U225 MESO INJECTOR
MADE IN FRANCE
The U225® “Made in France” is currently the most sophisticated dermal meso injector used by practitioners all over the world.
The quality of the components used in the U225® comes from the aeronautical industry incorporating the most advanced precision and safety techniques, guaranteeing intensive use with very long-lasting reliability.
MESO INJECTOR
HIGH PERFORMANCE
+ HIGH FREQUENCY
28 to 426 micro-injections per minute
+ SEPARATION OF NEEDLE AND SYRINGUE
Adaptable with Kit Mesbio
+ ELECTRO-PNEUMATIC DEVICE
Power and durability
+ MANUAL AND AUTOMATIC MODE
16 adjustable frequency
+ DEPTH ADJUSTEMENT
0 to 10mm
U225
+ Drive : Mechanical by electro pneumatic
+ Operating mode : Manual or automatic (16 frequencies)
+ Injection depth selection : Adjustable from 1 à 10 mm (+/-0.5)
+ Speed : 0.47 Hz to 7.1 Hz (28 to 426 inj/min)
+ Casing : Stainless steel structure and parts, polymethyl methacrylate covers, other parts are polyacetal
POWER SUPPLY
+ Input voltage: 100-240 V AC / 50–60 Hz
+ Output voltage : 12 V DC – 650 mA
+ Power consumption : < 0.5 A – < 5 Watts
+ Cable length: 1.80 metres
+ Operating temperature : 10°C to 40°C
+ Operating atmospheric pressure : 800 to 1060 hPa
+ Storage temperature : Room température
+ Air relative humidity : 5% to 95% (without condensation)
+ Classification : BF type
+ Dimensions : Approximately 275 mm (L) x 25 mm (l) x 155 mm (H) (injector only)
+ Weight : about 650 g (injector only)
+ Injection pressure selection : Adjustable from 0.5 to 5 bar (+/-0.3)
+ First marketed on : 03-02-2011
You can view the list of Mesbio Kits here →
