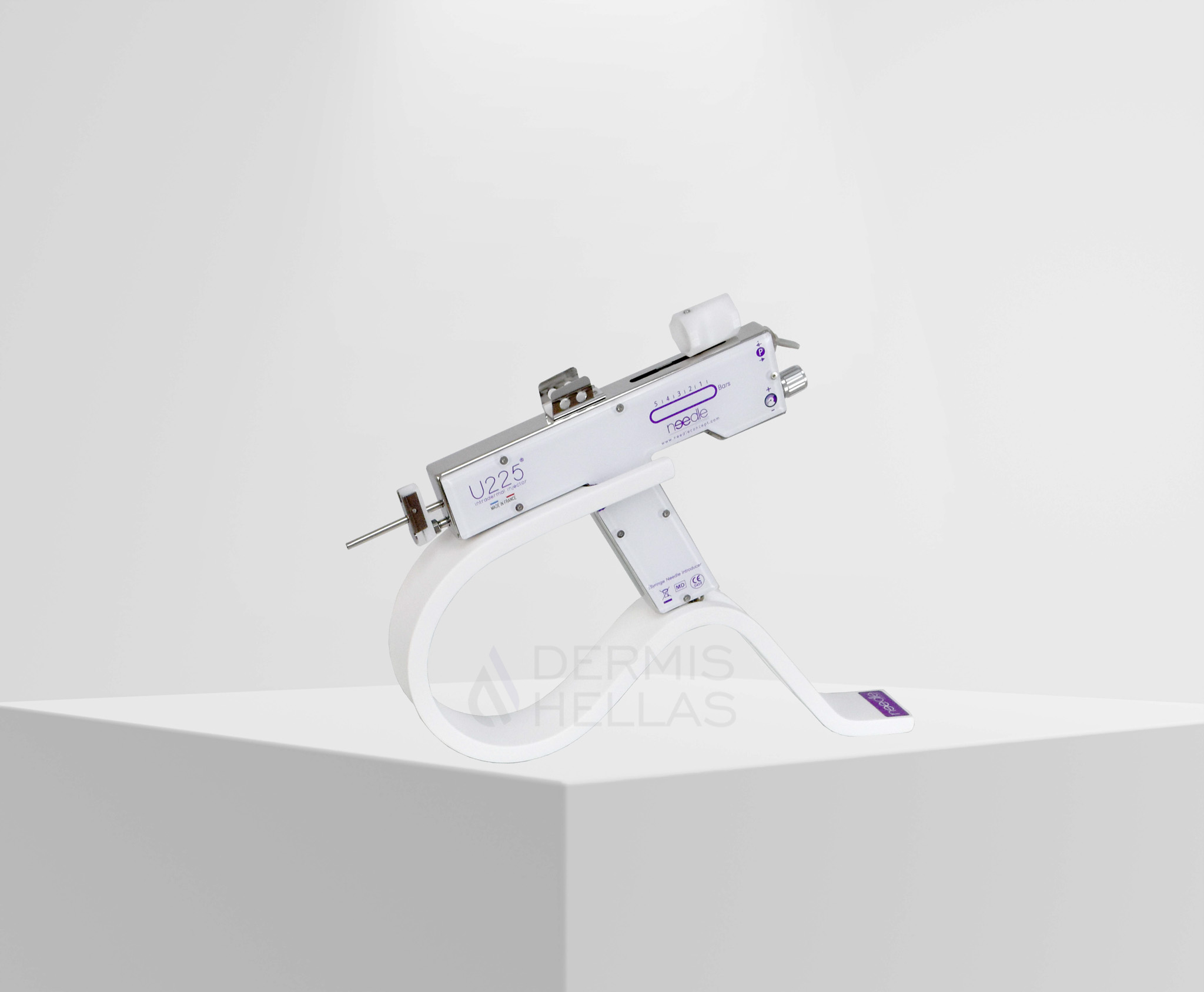

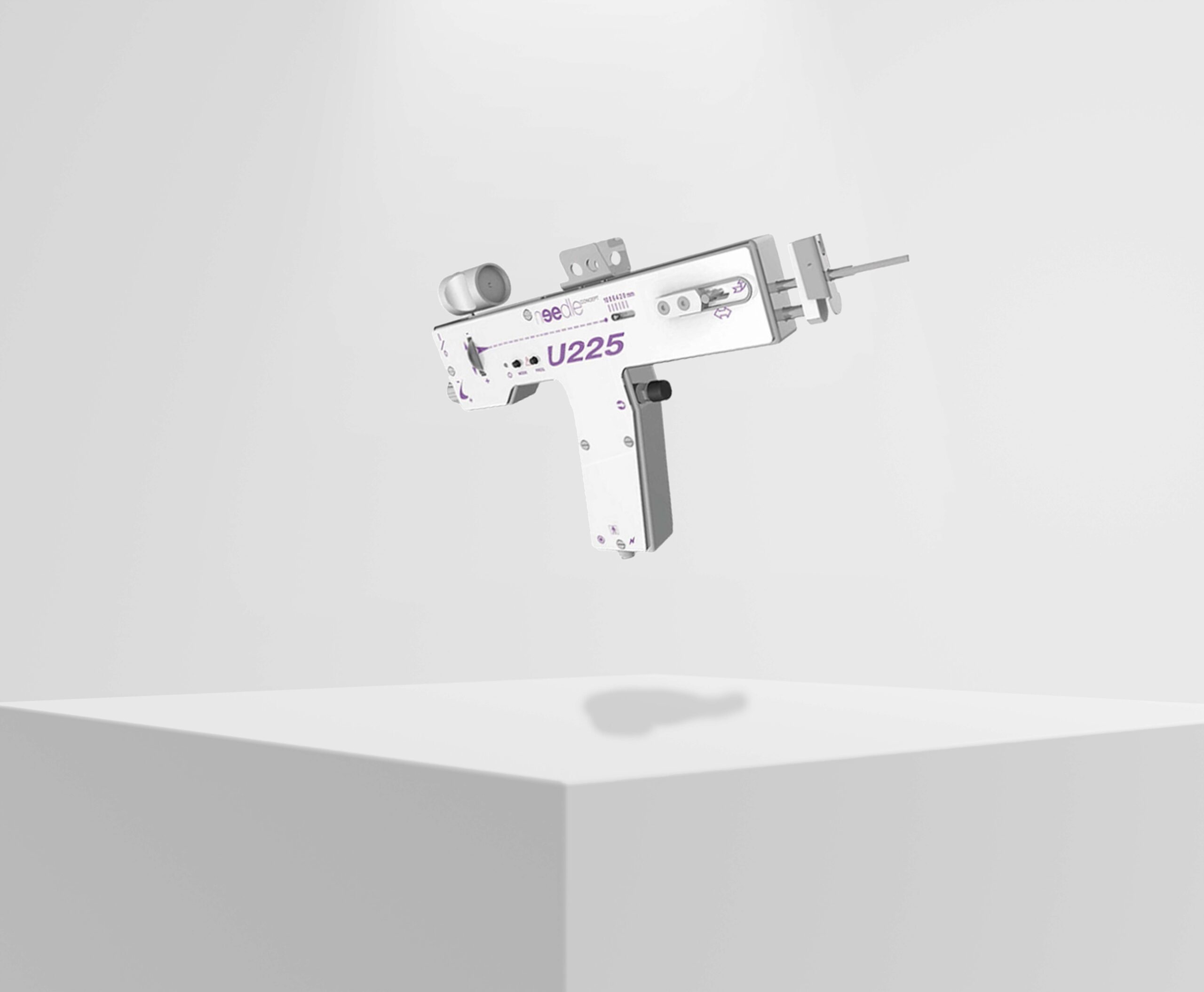

U225® Meso Injector

The U225® Meso Injector is currently the most sophisticated dermal meso injector used by practitioners all over the world.
The quality of the components used in the U225® Meso Injector comes from the aeronautical industry incorporating the most advanced precision and safety techniques, guaranteeing intensive use with very long-lasting reliability.

Moreover, it can be used to perform treatments both on the face and on the rest of the body, in a constant and repeatable way with a wide choice of injection frequency.

Also, it is easy-to-use meso-injector for both right-handed and left-handed people.

Find out here the mesbio kits →

Needle & Syringe Separation
This principle makes it possible to eliminate all vibratory phenomena and ensures perfect linearity in the movement of the needle.

High reliability & fine precision
Thanks to its unique blocking system, limits the loss of product. Its design guarantees intensive use, high precision and proven reliability.

Adjustable injection depth in summary
With the U225 the practitioner can finely adjust the penetration of the needle between 1 and 10mm.

Potential applications:

  • General Medicine
  • Rheumatoloy
  • Pain management
  • Cosmetic Medicine
  • Dermatology
  • Platelet Rich Plasma (PRP)

Characteristics:

U225® Meso Injector:

  • Drive : Mechanical by electro pneumatic
  • Operating mode : Manual or automatic (16 frequencies)
  • Injection depth selection : Adjustable from 1 à 10 mm (+/-0.5)
  • Speed : 0.47 Hz to 7.1 Hz (28 to 426 inj/min)
  • Casing : Stainless steel structure and parts, polymethyl methacrylate covers, other parts are polyacetal

Power Supply:

  • Input voltage: 100-240 V AC / 50–60 Hz
  •  Output voltage : 12 V DC – 650 mA
  • Power consumption : < 0.5 A – < 5 Watts
  • Cable length: 1.80 metres
  • Operating temperature : 10°C to 40°C
  • Operating atmospheric pressure : 800 to 1060 hPa
  • Storage temperature : Room température
  • Air relative humidity : 5% to 95% (without condensation)
  • Classification : BF type
  • Dimensions : Approximately 275 mm (L) x 25 mm (l) x 155 mm (H) (injector only)
  • Weight : about 650 g (injector only)
  • Injection pressure selection : Adjustable from 0.5 to 5 bar (+/-0.3)
  • First marketed on : 03-02-2011
